requirement analysis
The construction of XXX multimedia conference room system in this project includes display system, embedded digital conference system, digital audio amplification system, multimedia information access and processing system, conference camera acquisition system, central control system, recording and broadcasting system, etc.
According to the daily meeting needs of XXX company, the basic functional planning of the AV multimedia conference system in the conference room is as follows:
Can be used for daily internal meetings;
Can be used as a video conference room;
Can meet the requirements for various types of documentary screenings, training sessions, and presentations;
Can convene senior administrative meetings;
Can achieve free discussion in meetings, etc;
Realize intelligent and automated control;
Realize real-time recording, storage, live streaming, and on-demand of meetings.
Construction principles
Principle of practicality
The configuration and design of the system maximize the satisfaction of various office business needs such as daily meetings, report meetings, multimedia presentations, etc.
Progressiveness principle
The overall positioning of the system is domestically leading, and it should possess the mainstream technology and performance of building intelligence in China today. It should adopt advanced international or domestic technologies and take into account new technologies that will emerge in the future. The design should have a certain foresight to ensure that the system does not fall behind for a long time after completion and operation.
Reliability principle
Ensure that the equipment and technology used belong to the world's mainstream products, occupy a large user market in the corresponding application fields, and its related technologies are in a leading position. The various indicators of the system should meet the user's usage and design requirements, and the performance of the entire system should be stable and reliable. At the same time, from an application perspective, while meeting the requirements of users, efforts should be made to compress the cost of equipment as much as possible, in order to achieve the optimal performance price ratio.
Scalability principle
The design should fully consider the changes in future technological development and usage requirements, the possibility of system function expansion and technological improvement, in order to fully protect the investment, ensure the requirements of sustainable development, and ensure the investment benefits of the owners.
Progressive principle
The system can be implemented step by step, and the pre embedded pipes and wiring must be completed in one step with room for expansion;
Standardization principle
Adopting international and industry open technology standards and standardized products to avoid obstacles in system interconnection or expansion.
Integration principle
Highly integrated, small in size, lightweight, easy to move, and convenient to connect;
Under the premise of high integration, it has multiple functions and is easy for related devices to access;
The functions of each device can be fully utilized and integrated for collaboration after system integration;
Economic principle
The price of the system itself (including the system, technical services, and training);
The possible benefits of the economic effect budget after the system runs;
The cost required for implementing special on-site requirements for the system;
The development costs related to software and hardware required for system integration;
Easy scalability of the system;
Security principle
Including the security of the system itself and the security of information transmission.
Human centered design philosophy
Provide users in the conference room with a safe, comfortable, convenient, fast, efficient, and environmentally friendly living and working environment
Overview of the plan

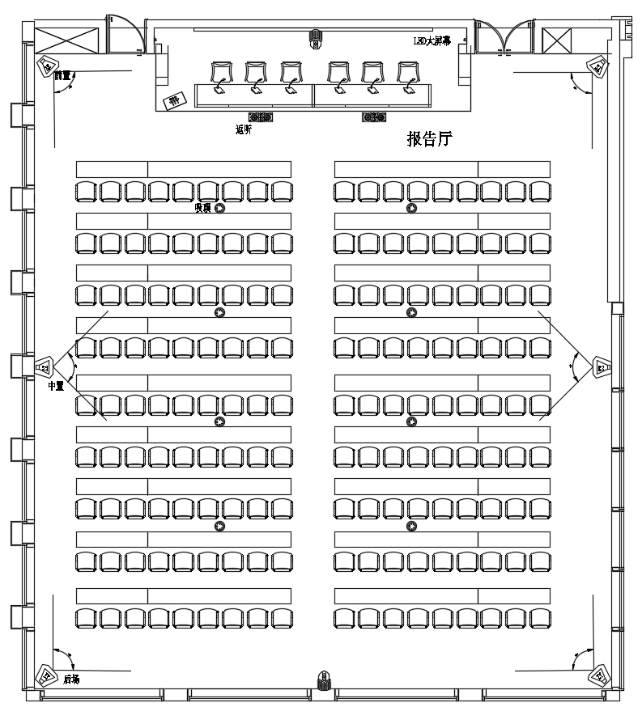

The conference room area involved in the system design of this project is approximately XX square meters. The specific dimensions are shown in the following figure:
Based on years of design experience, this conference room is divided into a multimedia display area, a conference speaking area, and an audio amplification area. The display area mainly consists of a large screen display system composed of XX; The conference speaking area mainly consists of one set of lavalier microphones, one set of handheld microphones, and one set of 1-to-4 gooseneck microphones. The amplification area consists of two full frequency 12 inch main speakers and two 10 inch auxiliary speakers to form an audio amplification system;
Miniature conference room
Functional positioning: generally used for departmental meetings, temporary discussions, interviews, and receptions
Area: 10-30 square meters
Number of attendees: 4-6 people
Infrastructure configuration: For smaller areas, the installation of a sound reinforcement system is generally not considered. For file demonstration needs, a high-definition LCD screen can be configured as the display end; If group meetings are needed, consider adding video conferencing terminal devices for remote interviews and meetings.
Small Meeting Room
Functional positioning: Department daily meetings, small training meetings, temporary meetings, video conferences
Area: 30-60 square meters
Number of attendees: 10-20 people
Infrastructure configuration: It is necessary to meet the requirements of meeting and speaking, file display, and video conferencing functions. Generally, a speaking system needs to be configured
Sound reinforcement system
Recording system
display system
Multimedia table plug
Medium sized conference room
Functional positioning: Department daily meetings, training meetings, decision-making meetings, video conferences
Area: 100-150 square meters
Number of attendees: 25-50 people
Infrastructure configuration: Must meet functions such as voting, voting, paperless, remote video, recording, etc
Speech system
Sound reinforcement system
Recording system
display system
Multimedia table plug
Paperless system
Matrix system
Central control system
Large lecture hall
Functional positioning: large-scale conferences, presentation conferences, training conferences, presentation speeches, academic exchanges
Area: 200-300 square meters
Number of attendees: 100-200 people
Infrastructure configuration: meeting and speech, hall sound reinforcement, text display, remote video, recording and broadcasting, simultaneous interpreting and other functions are required.
Speech system
Sound reinforcement system
Recording system
display system
Multimedia socket
Matrix system
Central control system
system composition
This XX multimedia conference system design includes one X ㎡ central conference room and one X ㎡ computer room. It includes the following subsystems:
Multimedia integrated control system;
Display system;
Sound reinforcement system;
Conference speech system;
Sound amplification system;
Recording system.
System diagram
Multimedia Integrated Control System
The multimedia integrated control system adopts the UT series audio and video integrated machine as the core control equipment. The multimedia control host adopts the design concept of ALL-IN-ONE, with a software visual operation interface platform and hardware plug-in modular design, aiming to provide users with an industry integrated solution.
As shown in the above figure, the multimedia control host is the core equipment of modern multimedia conference room systems, which has the following characteristics:
Highly integrated, space saving, easy to use, easy to maintain, and cost reducing.
Centralized remote management of multiple conference rooms saves the workload of operators.
Video data sharing between conference rooms is suitable for holding all staff meetings and large-scale promotional meetings.
Audio and video interaction between meeting rooms, suitable for interactive training meetings and discussion meetings.
Visual operation interface, clear at a glance, drag and drop operation, simple and easy to use.
Live broadcast on the Internet. Outsiders can scan the QR code to watch the conference content live.
system function
Support 4K high-definition mixed matrix
Support local SDI VGA、HDMI、DVI、CVBS、 Fiber optic, HDBaseT input image, network IPC network stream input, local image output using RGB4:4:4 technology, high-quality image quality, no delay or damage. The network video stream adopts advanced H.265 and H.264 High Profile encoding and decoding technologies to meet the requirements of high image quality and low latency applications under low bandwidth, while solving comprehensive applications such as image quality, storage, interaction, and visualization. Supports protocols such as TCP/UDP/RTSP/RTP/ONVIF/H.263/SIP/HTTP to achieve integrated communication of streaming media signals and local signals, and enables centralized management, visualization, and arbitrary calling.
Digital Audio Processor
Using a 16X16 audio processor core, it can perform mixing, gain, noise reduction, echo suppression, and other processing on the connected audio. It supports fast switching and pre plan switching of audio signals, audio encoding, and centralized audio processing in venues such as conferences and command vehicles.
Programmable central control system
For the convenience of users and to improve work efficiency, a central control system with powerful control functions is designed for each conference room. The operation and control of numerous devices are completed through the central control system, and the pre debugged states of some complex devices are stored. Users only need to operate the touch screen with an intuitive all Chinese interface to complete the operation of most functions of the entire system.
System control can achieve the following functions: users only need to sit in front of the touch screen to intuitively operate the entire conference system, including system switches, device switches, various audio and video signal switching, signal source playback and stop, various combination mode entry and switching, as well as the conference audio system used for sound reinforcement; A digital conference system used for discussion, voting, and voting; Video conferencing system for remote meetings; Large screens and projection systems used for video display; Multimedia peripheral devices used to provide audio and video signals, etc.
Support visual control interface
In traditional conference rooms, equipment is centrally controlled and managed by a central control system. Software programming is performed on the operating end, and various operations are achieved through control buttons. This solution often encounters the following problems when controlling video signal switching:
It is impossible to determine in advance whether there is a signal in this video.
It is impossible to determine in advance whether the video signal effect is good or not, whether there is a lack of color or patterns.
It is impossible to determine in advance whether the camera image is correct or not. Do you need to adjust it in advance.
So often, images with no signal or poor effects are switched to the big screen, which affects the usability.
In order to solve the above problems, the HAIMINGWEI system has added a visual control platform IMC. On the IMC platform, the video image of any distributed node can be viewed, and the operator only needs to drag the corresponding video to switch the video signal. The visual management platform IMC also supports centralized control management, scene management, audio management, interactive terminal communication management, recording management, central control management, equipment information management, etc.
Support built-in 4K ultra clear recording and playback, video terminal, 4-point MCU
HMW supports built-in 4K ultra clear recording and playback, video terminal, 4-point MCU function, adopts H.265 encoding and decoding algorithm, and supports H.263 \ SIP protocol. All mainstream video conferencing systems in the industry are interoperable. The visual management interface enables the switching, starting, and stopping of recording signals, as well as the calling and hanging up of video conferences.
